Settingup Hadoop2.0+ - Hadoop @ Desk (Single Node Cluster)

This is part II of the series about Hadoop @ Desk. Hope you’ve gone thorough the setup prerequistes in Part I, and are ready to continue with Hadoop.2.0+ setup.

As discussed in part I, I’ve setup my permanent desktop OS (Host OS. Its also dual booting with Windows7) as Lubuntu 14.04 LTS. I’ve also setup Type1 virtualization suite, Qemu-KVM inside my Host. I’m using the exact same OS (Lubuntu 14.04 LTS), for my Guest as well. I’ve setup my Guest using Virt-Manager.1.0 UI.

I’ve compiled the steps based on some external blogs (read here, here and here).

Power On your guest now.  Steps below; (All steps are done on your Guest, bash command line)

A. Settingup base environment for Hadoop

1. Update your system sources

$ sudo apt-get update

2. Install Java (Open JDK)

$ sudo apt-get install default-jdk

3. Add a dedicated Hadoop group and user. Then add hadoop user to the ‘sudo’ group.

$ sudo addgroup hadoop
$ sudo adduser --ingroup hadoop hduser
$ sudo adduser hduser sudo

4. Install Secure Socket Shell (ssh)

$ sudo apt-get install ssh

5. Setup ‘ssh’ certificates

$ su hduser
Password:
$ ssh-keygen -t rsa -P ""

$ cat $HOME/.ssh/id_rsa.pub >> $HOME/.ssh/authorized_keys
$ ssh localhost

The 3rd command adds the newly created key to the list of authorized keys so that Hadoop can use ssh without prompting for a password.

Note: While prompting for the file name, just hit enter to accept the default file name.

At this point, snapshot your VM and restart the VM.

B. Settingup Hadoop

Now we’ve setup the basic environment, which requires by Hadoop. Now we will move on to install Hadoop.2.7. Please note that I am setting up the entire Hadoop on a dedicated ext4 partition (Not the root partition) for better management. You need to replace this path, as per your environment. (i.e. replace /media/SYSTEM as per your environment).

Note: I’ve underlined the paths in the below steps, that you need to replace with your own.

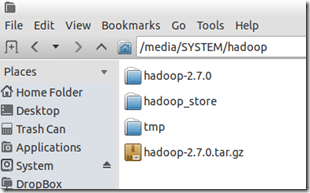

6. Get the core Hadoop Package (Version 2.7). Unzip it then move to our dedicated Hadoop partition.

$ sudo chmod 777 /media/SYSTEM
$ wget http://apache.mesi.com.ar/hadoop/common/hadoop-2.7.0/hadoop-2.7.0.tar.gz

$ tar xvzf hadoop-2.7.0.tar.gz
$ sudo mv * /media/SYSTEM/hadoop
$ sudo chown -R hduser:hadoop /media/SYSTEM/hadoop

Also create a ‘tmp’ folder, which will be used by hadoop later.

$ sudo mkdir -p /media/SYSTEM/hadoop/tmp
$ sudo chown hduser:hadoop /media/SYSTEM/hadoop/tmp



C. Settingup Hadoop Configuration Files

The following files will have to be modified to complete the Hadoop setup:  (Replace the paths based on your environment)

~/.bashrc
/media/SYSTEM/hadoop/hadoop-2.7.0/etc/hadoop/hadoop-env.sh
/media/SYSTEM/hadoop/hadoop-2.7.0/etc/hadoop/core-site.xml
/media/SYSTEM/hadoop/hadoop-2.7.0/etc/hadoop/mapred-site.xml.template
/media/SYSTEM/hadoop/hadoop-2.7.0/etc/hadoop/hdfs-site.xml

7. Update .bashrc

Before editing the .bashrc file in our home directory, we need to find the path where Java has been installed to set the JAVA_HOME environment variable using the following command:

$ update-alternatives --config java

Append the below to the end of .bashrc. Change ‘JAVA_HOME’ and ‘HADOOP_INSTALL’, as per your environment.

$ vi ~/.bashrc
#HADOOP VARIABLES START
export JAVA_HOME=/usr/lib/vm/java-7-openjdk-amd64
export HADOOP_INSTALL=/media/SYSTEM/hadoop/hadoop-2.7.0
export PATH=$PATH:$HADOOP_INSTALL/bin
export PATH=$PATH:$HADOOP_INSTALL/sbin
export HADOOP_MAPRED_HOME=$HADOOP_INSTALL
export HADOOP_COMMON_HOME=$HADOOP_INSTALL
export HADOOP_HDFS_HOME=$HADOOP_INSTALL
export YARN_HOME=$HADOOP_INSTALL
export HADOOP_COMMON_LIB_NATIVE_DIR=$HADOOP_INSTALL/lib/native
export HADOOP_OPTS="-Djava.library.path=$HADOOP_INSTALL/lib/native"
#HADOOP VARIABLES END

8. Update ‘hadoop-env.sh’

We need to set JAVA_HOME by modifying hadoop-env.sh file. Adding the above statement in the hadoop-env.sh file ensures that the value of JAVA_HOME variable will be available to Hadoop whenever it is started up.

$ vi /media/SYSTEM/hadoop/hadoop-2.7.0/etc/hadoop/hadoop-env.sh

export JAVA_HOME=/usr/lib/jvm/java-7-openjdk-amd64



9. Update ‘core-site.xml’

The ‘core-site.xml’ file contains configuration properties that Hadoop uses when starting up.  This file can be used to override the default settings that Hadoop starts with.

Open the file and enter the following in between the <configuration></configuration> tag:

$ vi /media/SYSTEM/hadoop/hadoop-2.7.0/etc/hadoop/core-site.xml

<configuration>
 <property>
  <name>hadoop.tmp.dir</name>
  <value>/media/SYSTEM/hadoop/tmp</value>
  <description>A base for other temporary directories.</description>
 </property>

 <property>
  <name>fs.default.name</name>
  <value>hdfs://localhost:54310</value>
  <description>The name of the default file system.  A URI whose
  scheme and authority determine the FileSystem implementation.  The
  uri's scheme determines the config property (fs.SCHEME.impl) naming
  the FileSystem implementation class.  The uri's authority is used to
  determine the host, port, etc. for a filesystem.</description>
 </property>
<property>
  <name>dfs.permissions.enabled</name>
  <value>true</value>
 </property>
 <property>
  <name>dfs.permissions.superusergroup</name>
  <value>hadoop</value>
 </property>

</configuration>

10. Update ‘mapred-site.xml’

Create the ‘mapred-site.xml’ from existing template available with Hadoop installation:

$ cp /media/SYSTEM/hadoop/hadoop-2.7.0/etc/hadoop/mapred-site.xml.template /media/SYSTEM/hadoop/hadoop-2.7.0/etc/hadoop/mapred-site.xml

The mapred-site.xml file is used to specify which framework is being used for MapReduce.
We need to enter the following content in between the <configuration></configuration> tag:

<configuration>
 <property>
  <name>mapred.job.tracker</name>
  <value>localhost:54311</value>
  <description>The host and port that the MapReduce job tracker runs
  at.  If "local", then jobs are run in-process as a single map
  and reduce task.
  </description>
 </property>
</configuration>

11. Update ‘’hdfs-site.xml’

The ‘/media/SYSTEM/hadoop/hadoop-2.7.0/etc/hadoop/hdfs-site.xml’ file needs to be configured for each host in the cluster that is being used.
It is used to specify the directories which will be used as the namenode and the datanode on that host.

Before editing this file, we need to create two directories which will contain the namenode and the datanode for this Hadoop installation.
This can be done using the following commands:

$ sudo mkdir -p /media/SYSTEM/hadoop/hadoop_store/hdfs/namenode
$ sudo mkdir -p /media/SYSTEM/hadoop/hadoop_store/hdfs/datanode
$ sudo chown -R hduser:hadoop /media/SYSTEM/hadoop/hadoop_store

Open the file and enter the following content in between the <configuration></configuration> tag:

hduser@laptop:~$ vi /media/SYSTEM/hadoop/hadoop-2.7.0/etc/hadoop/hdfs-site.xml

<configuration>
 <property>
  <name>dfs.replication</name>
  <value>1</value>
  <description>Default block replication.
  The actual number of replications can be specified when the file is created.
  The default is used if replication is not specified in create time.
  </description>
 </property>
 <property>
   <name>dfs.namenode.name.dir</name>
   <value>file:/media/SYSTEM/hadoop/hadoop_store/hdfs/namenode</value>
 </property>
 <property>
   <name>dfs.datanode.data.dir</name>
   <value>file:/media/SYSTEM/hadoop/hadoop_store/hdfs/datanode</value>
 </property>
</configuration>



At this point, snapshot your VM and restart the VM to make the change in effect.



D. Format the HDFS file system

Now, the Hadoop file system needs to be formatted so that we can start to use it. The format command should be issued with write permission since it creates current directory under ‘/media/SYSTEM/hadoop/hadoop_store/hdfs/namenode’ folder:

12. Format Hadoop file system

$ su hduser
$ hadoop namenode –format

Note that hadoop namenode -format command should be executed once before we start using Hadoop. If this command is executed again after Hadoop has been used, it'll destroy all the data on the Hadoop file system.

E. Start/Stop Hadoop

Now it's time to start the newly installed single node cluster.

13. Start Hadoop

We can use start-all.sh or (start-dfs.sh and start-yarn.sh)

$ start-all.sh

We can check if it's really up and running:

$ jps

You can also verify by hitting the below URL in the browser.

http://localhost:50070/ - web UI of the NameNode daemon



14. Stop Hadoop

We run stop-all.sh or (stop-dfs.sh and stop-yarn.sh) to stop all the daemons running on our machine:

$ stop-all.sh



15. Test your installation

For testing I’ve moved a small file to HDFS file system and displayed it content from there.

16. Snapshot your VM

Now you’ve a working version of Hadoop. Snapshot your VM at this point, so that if you’ve any issues with future experiments, you can roll back the VM to this very working state of Hadoop.

Prepare Yourself - Hadoop @ Desk (Single Node Cluster)

The whole idea about setting up Hadoop at your very desktop or laptop seems bit crazy. Especially, if you're having entry level configurations for your system. This is one of the primary reason, why many are staying out of Big Data development experience. Many thinks, they need servers or at least multiple machines (A ready made Lab environment) to setup Hadoop, and they never thought about playing it at home.

This was the same conviction I'd, till I realized a working Hadoop.2.0, at my desktop (with low specs: Dual Core Processor with 4Gig RAM). So I thought, sharing my experience will be helpful for many having the same thoughts. So in this blog, I will lay down a bit of prerequisites or environment preferences we need to make, for having a usable Hadoop installation at you're desktop/laptop.

Based on my experiences, I've found the below choices which are extremely important for the success of it. Or in other words, these are the same bottlenecks which restrict many from using Hadoop in a typical desktop or laptop.

A. Prefer a hands-on installation of Hadoop over Quick Start VM's

Many choose the easy way out for experiencing Hadoop. There are quick start VM's available from cloudera and  Hortonworks. I agree that, you can directly jump it to using the system, if you’ve a decent configuration. But it has the following cons.

i.  The prebuilt VM’s packs a huge set of modules, which you never use. But it will eat up your precious system resources, making your system clog down. You may only use a few modules in actual scenarios.

ii.  You never know the bare of you’re hadoop system, which are essentials to better understand your Map-Reduce programs and to troubleshoot low level issues

In essence, go for installing the Hadoop system on your own. Keep only the modules you actually wants.

e.g. I’ve installed Hadoop from scratch, starting from hadoop core.

B. Prefer a lightweight Desktop Host OS

Once you are ready to handle the Hadoop installation by yourself, the next hurdle is choosing the best desktop OS, which suits the need. As Hadoop may need good system resources, the key point is to choose a Host OS which is light on system resources as much as possible, with a descent GUI desktop and features for our daily use.

e.g. I’ve chosen, Lubuntu.14.04 LTS as my Host OS, which after boot-up consumes only 160MB of RAM with a working desktop.

C. Prefer Virtualization Technology over bare installation to Host system

Many get lost with Hadoop installation, when they mess up too much with their primary desktop OS. So the rule of thumb is, never pollute your primary desktop OS (Host OS). Keep it only for your daily tasks like browsing, document editing and other personal stuffs. Separate serious stuffs to Linux Containers or Virtual machines (Guest or Guest OS).

e.g I’ve setup the whole hadoop system inside a Virtual Machine and also inside Linux Containers.

D. Prefer a superior Virtualization Technology

Its also important to choose the right Virtualization Suite, as Virtualization itself add some performance overhead. So choose the one with the least overhead. Linux  Containers will be the top notch choice for this purpose. Both LXC and LXD is a best fit for setting up the cluster. If you go with Virtual Machines, Type1 hypervisors are more performers than Type2 ones. Many choose VMWare Player or VirtualBox which are essentially Type2 and significantly slower. Choose Type1 instead in such cases, like KVM (Though debates are still going on its Type1 status). If Docker/Containers works, it will be the best.

One more option to maximize the performance is to para-virtualize the guest OS virtual devices, than fully virtualizing them.

Other good thing about using containers/virtualization over host machine is, you can easily save the state of Container/Guest OS (Snapshots), at any point in time. Since hadoop installation steps are pretty long and error prone, once in a while take a snapshot of your Container/VM. When something goes wrong, restore the Container/VM back to the most previous working state, so that you wont lose all your past days precious hard work.

e.g I’ve chosen LXD/LXC Containers with ZFS to setup my cluster.



If your choice is Virtual Machines, I will recommend Qemu-KVM (Kernel Virtual Machine) under Linux and using internal snapshots. I’ve para-virtualized the Display/Disk/Network/Memory access. I’ve detailed both concepts in this blog.

E. Prefer a lightweight Guest OS

This step is similar to choosing your Host OS. Your Container/VM or Guest OS should also light as possible to have more resources for hadoop. If you are using Linxuc Container choose Ubuntu LTS Image. For Virtual Machines, You can choose Ubuntu Core or Ubuntu Server, if you’re comfortable with CLI. Ubuntu Core is as light as possible and will provide you the best experience with Hadoop than with others. You can also choose an OS with a GUI desktop, but select the one, which is very lightweight.

e.g. For my LXD container, I’ve chosen Trusty Container Image. For clusters using Virtual Machines, I’ve chosen, Lubuntu.14.04 LTS as my Guest OS as well.

We will see the actual Hadoop.2.0+ setup in Lubuntu (Host/Guest) in next blog. Thank you!
